SHUIFU M9 Touchless Automatic Car Wash Equipment

Model: SHUIFU-M9 | Brand: Shuifu | Manufacture Country: China


China SHUIFU M9 Touchless Automatic Vehicle Wash Machine


SHUIFU-M9 TouchFree CarWash Machine Washing Packages

  • Start

  • Wheel wash(Option)

  • Underbody

  • HP(High pressure) Water

  • Thick Foam

  • HP(High pressure) Water

  • Presoak

  • HP(High pressure) Water

  • Blowers(Option)

  • Stop & Reset


SHUIFU-M9 Min. Installation Size: L*W*H=6200mm*3686mm*3300mm

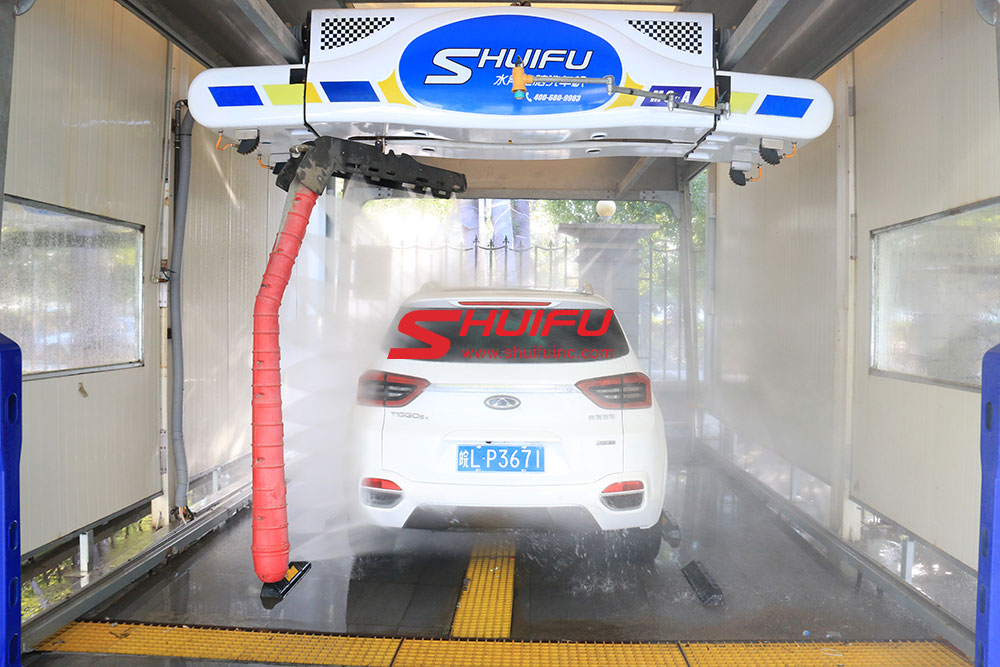

shuifu m9 touchless car wash machine brushless washing equipment (1)shuifu m9 touchless car wash machine brushless washing equipment (3)shuifu m9 touchless car wash machine brushless washing equipment (2)

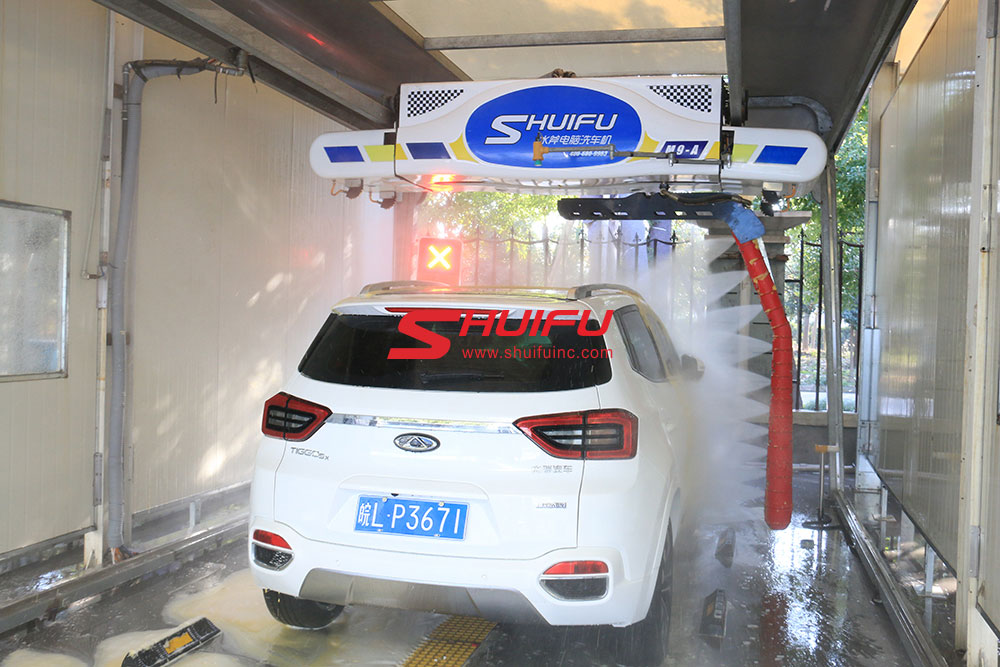

shuifu m9 touchless car wash machine brushless washing equipment (4)shuifu m9 touchless car wash machine brushless washing equipment (6)shuifu m9 touchless car wash machine brushless washing equipment (7)

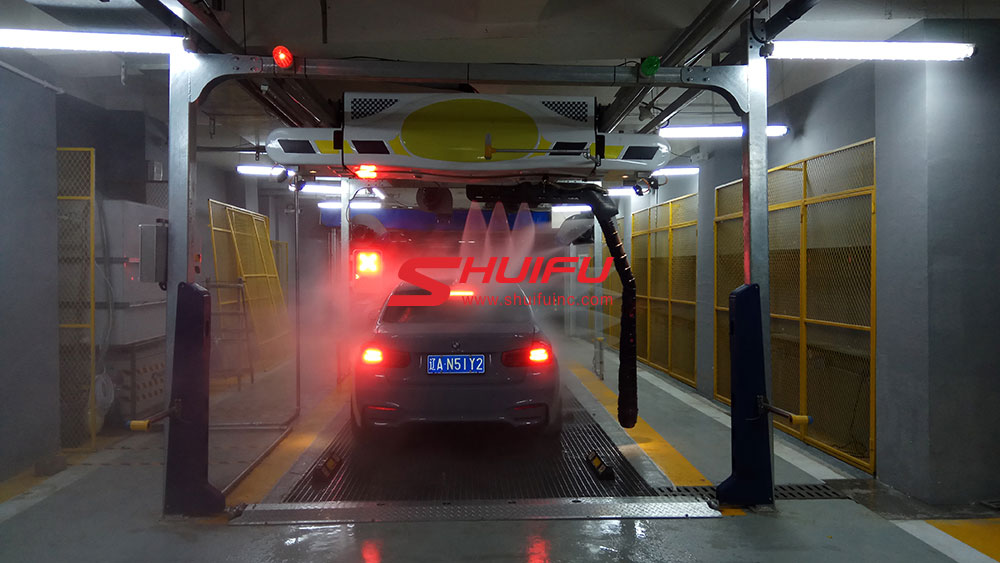

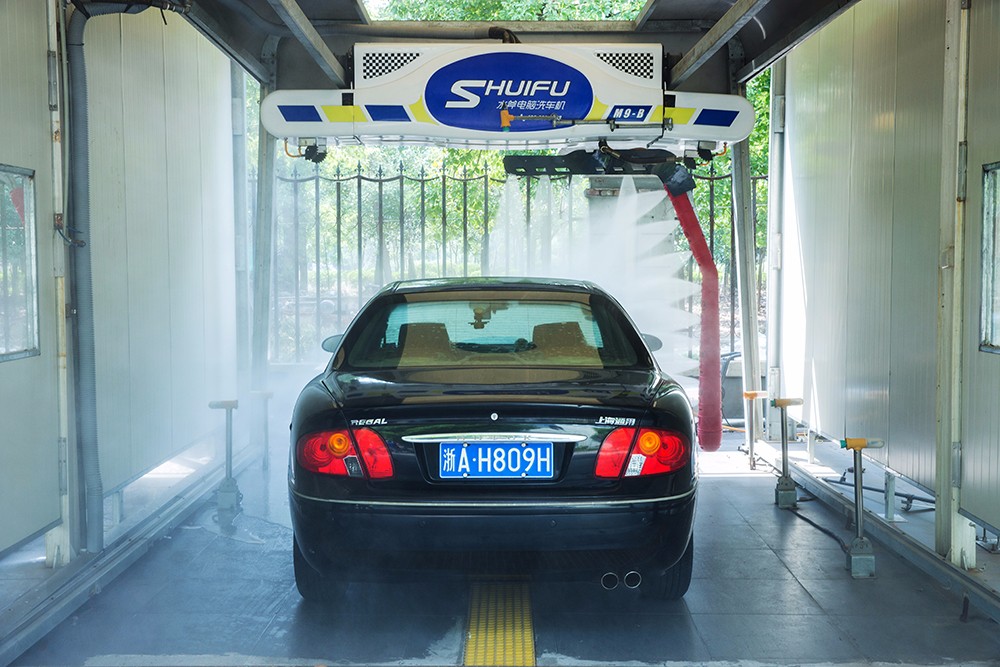

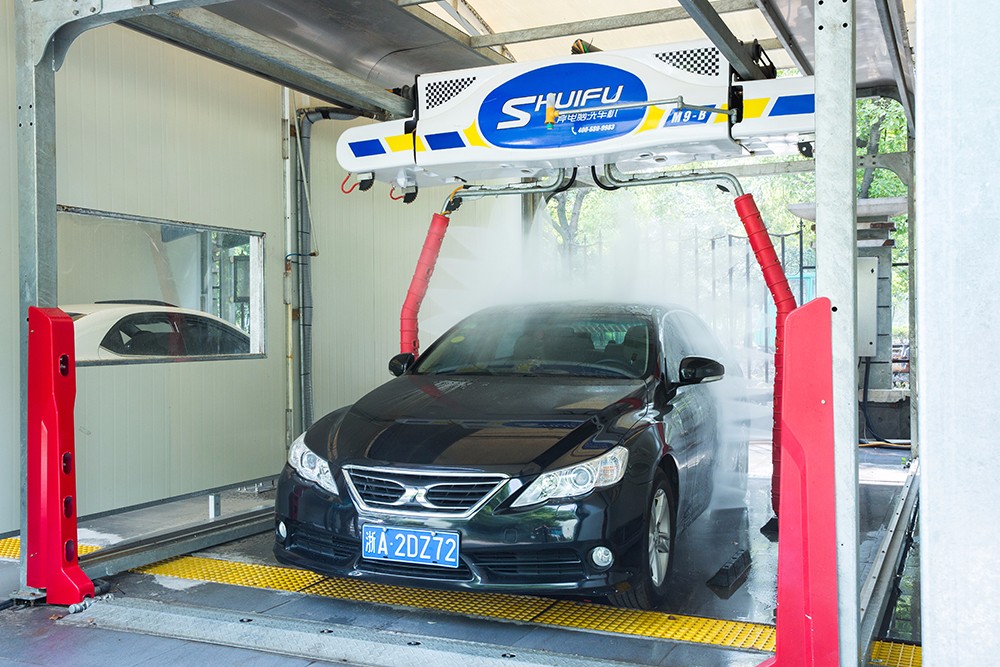

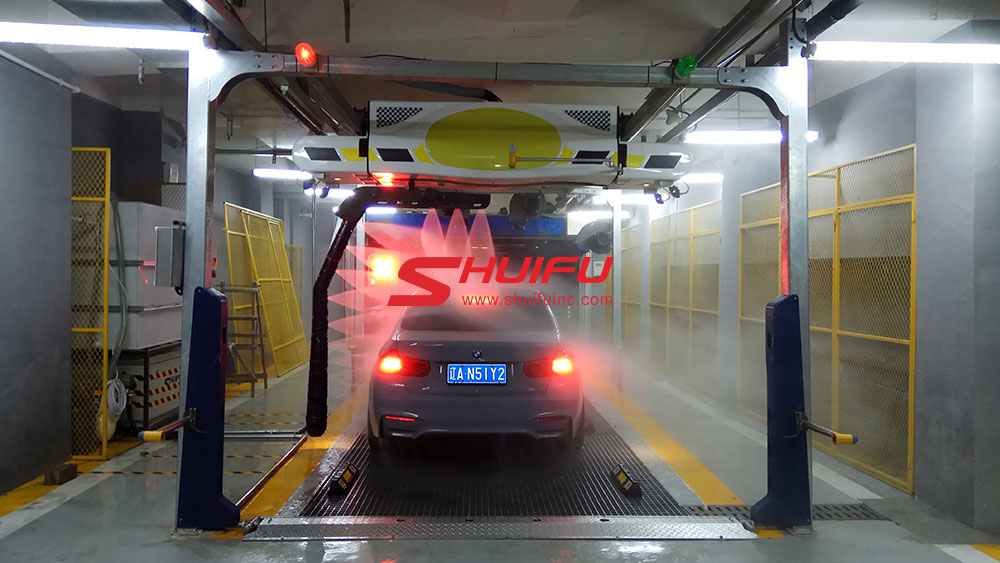

SHUIFU-M9 Automatic Touchless Car Wash Machine

car-wash machine-M9-made-by-SHUIFU-CHINAcar wash machine touchless M9 SHUIFU CHINAcar shampoo touchless M9 SHUIFU CHINA

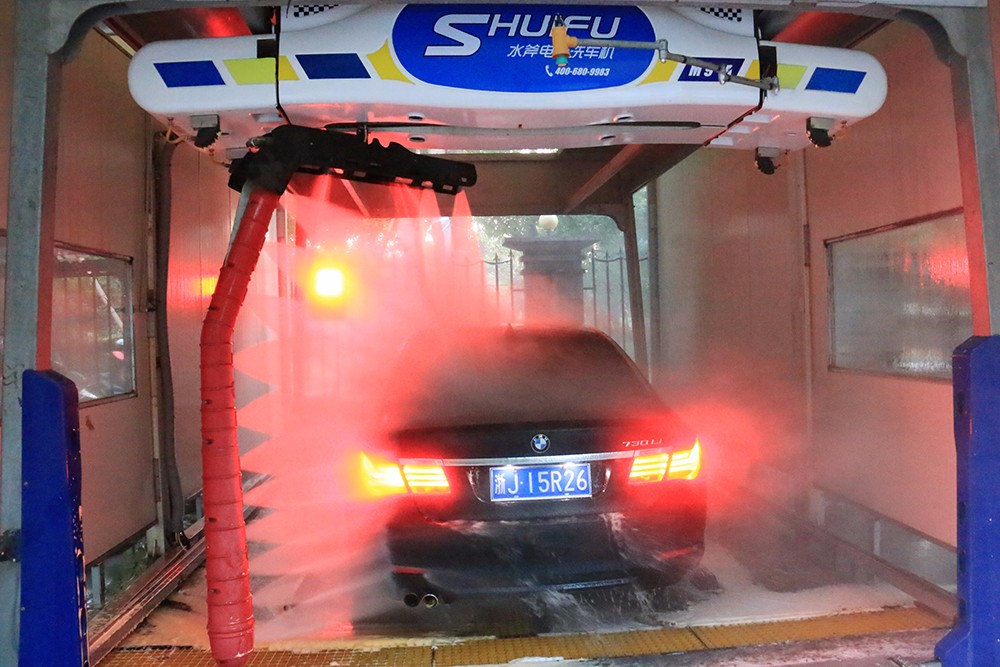

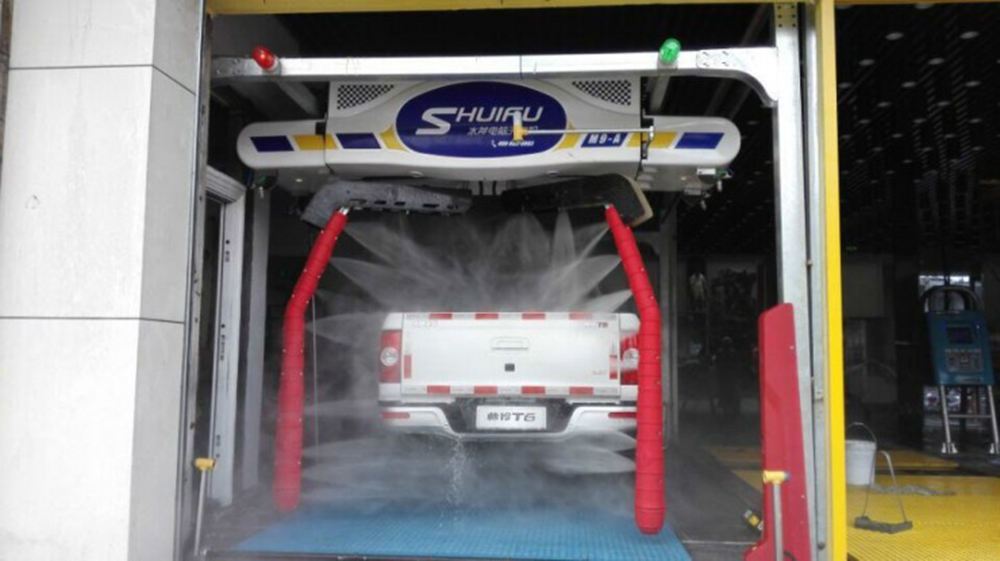

SHUIFU M9 Touchless Car Wash Machine with HP (high-pressure) water cleaning system & Soap & Presoak & Double arm(Optional)


SHUIFU M9 TOUCHLESS CAR WASH MACHINESHUIFU M9 TOUCHLESS CAR WASH MACHINESHUIFU M9 TOUCHLESS CAR WASH MACHINE

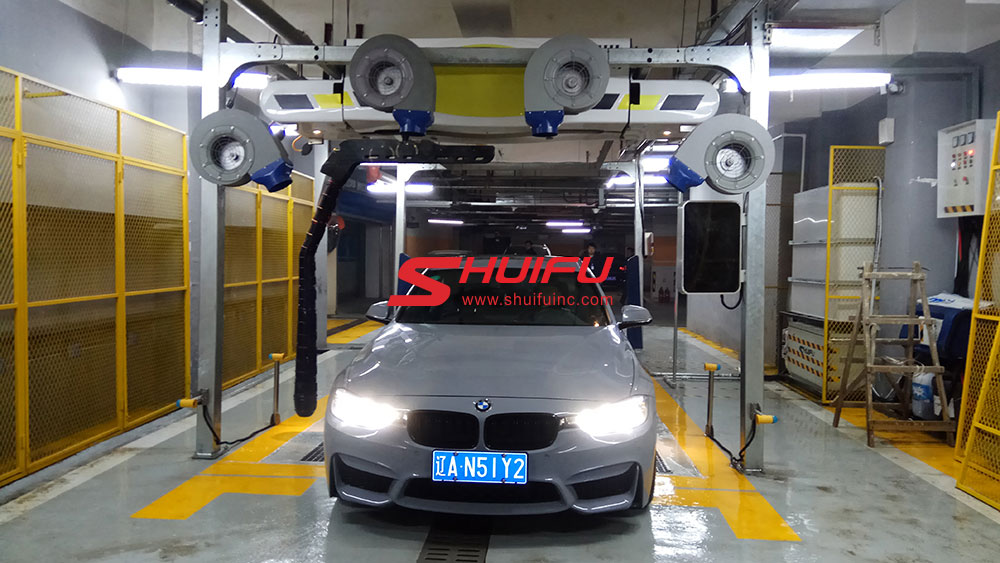

Blowers for SHUIFU M9 touchless car wash system, with 4~8 blowers for better washing result, can be designed on frame or indepedent arch.


car washes touchless high-pressure-water M9 SHUIFU CHINAcar wash equipment cost touchless M9 SHUIFU CHINAcommercial car wash equipment M9-made-by-SHUIFU-CHINA.jpg

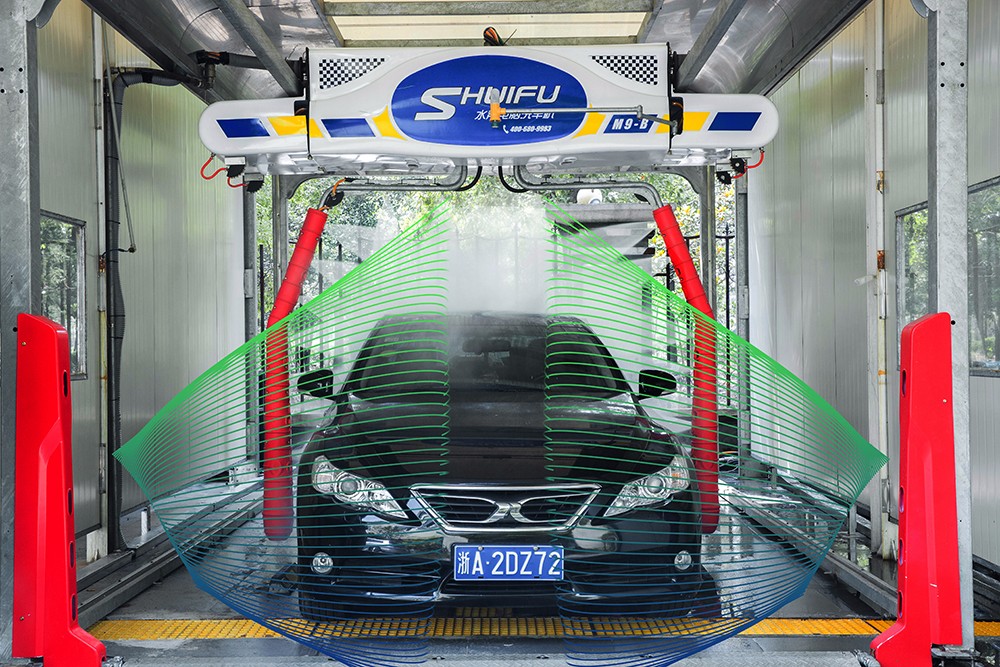

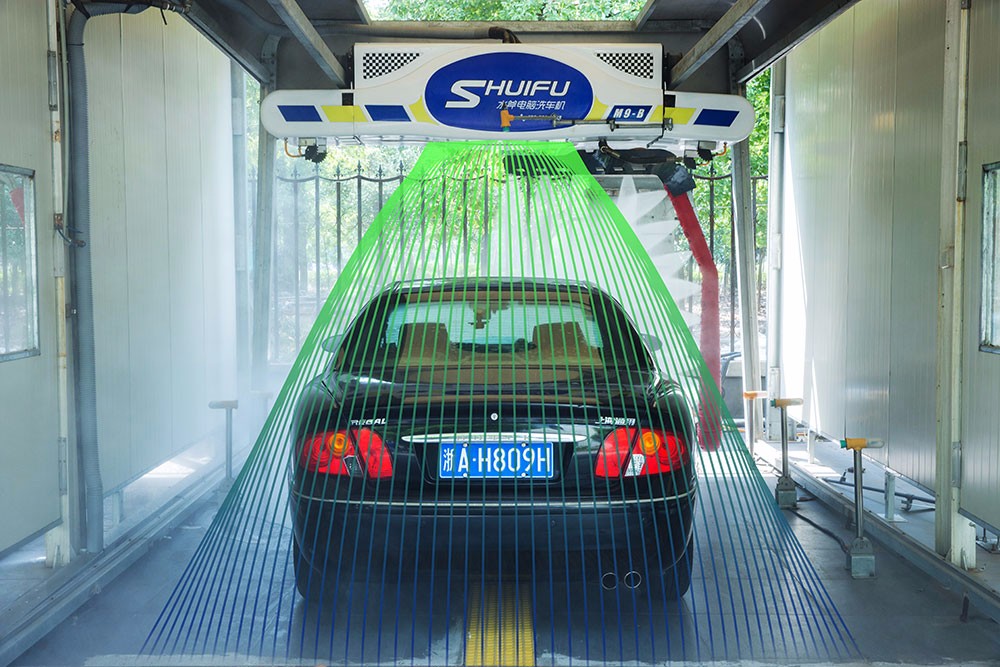

SHUIFU M9 Touchfree Car Wash Machine Can Automatically Sense and Detect The Car By 2D+3D Way By Germany Pepperl +Fuchs Ultrasonic Sensors Supports, SHUIFU-M9 Touchless Car Wash Machine Offering A Splendid Open Bay Cleaning The Car And Dramatically Increase the Sanctification From Customers.

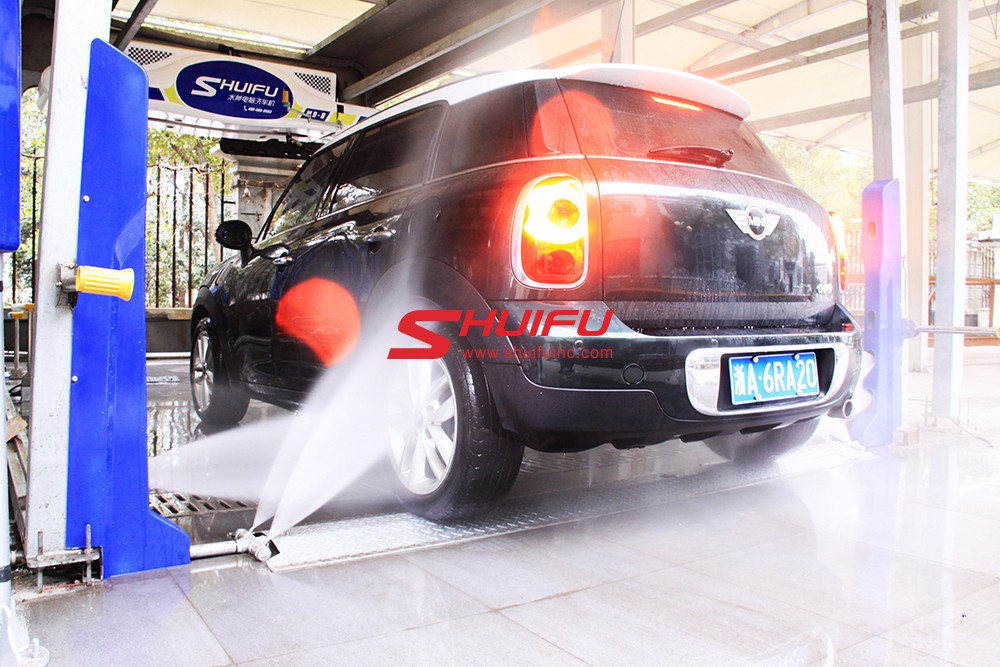

car wash equipment prices for touchless with chassis-wash-wheel-blaster M9 SHUIFU CHINAcar-wash machine-running-chassis-underbody-washing-M9-made-by-SHUIFU-CHINAcar-wash machine-running-chassis-underbody-washing-with-high-pressure-M9-made-by-SHUIFU-CHINA

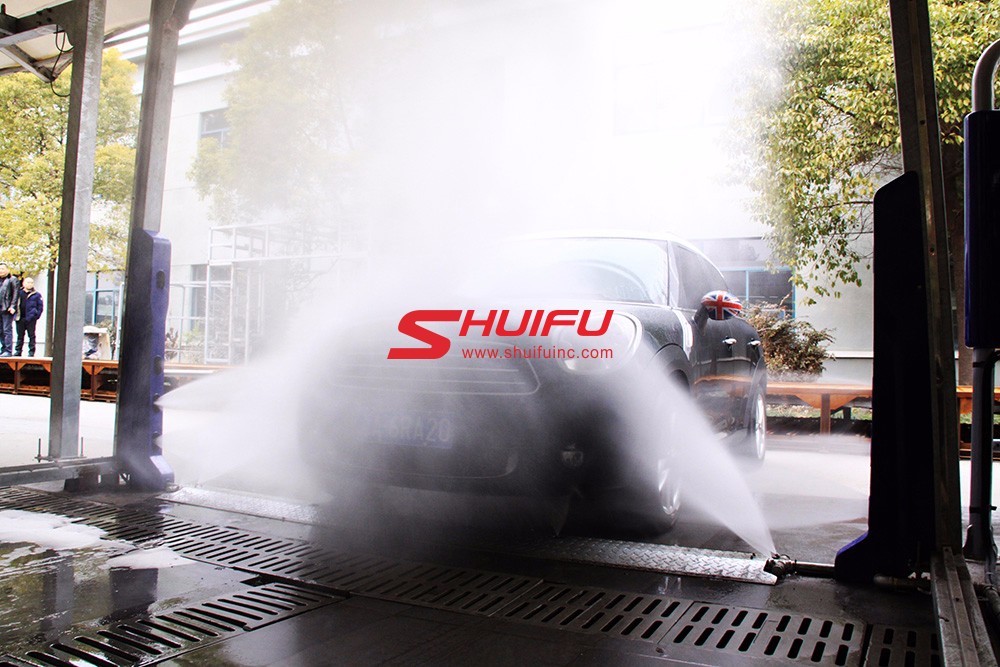

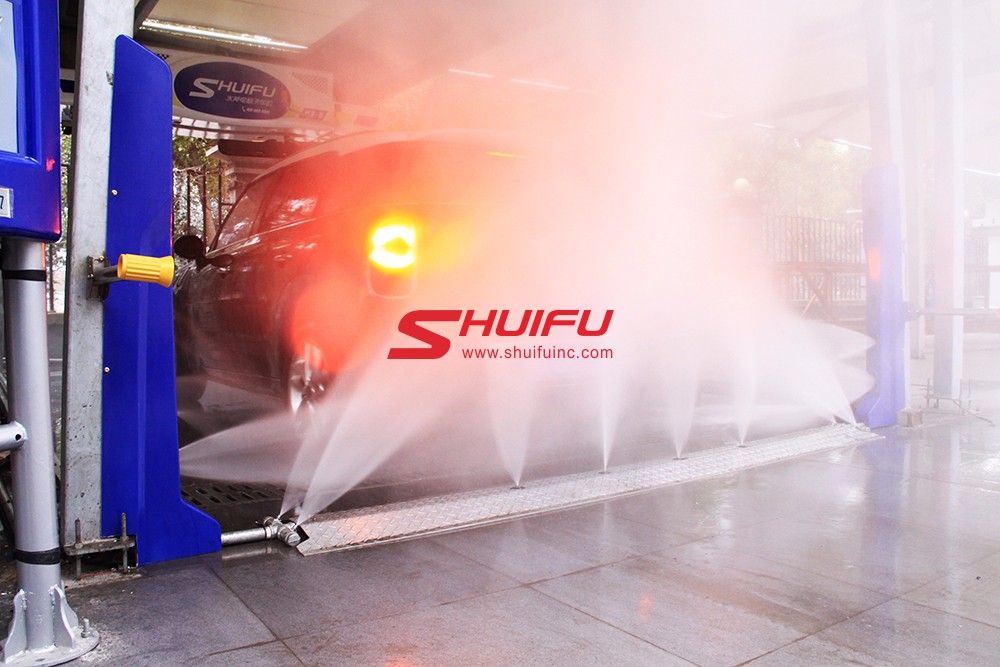

SHUIFU M9 SHUIFU M9 Touchfree Car Wash Machine Bring A New Feature HP(High-pressure) Water For Underbody Chassis Washes, It Will Not Only Wash Out Dirties Underbody Also Can Prewash The Car.

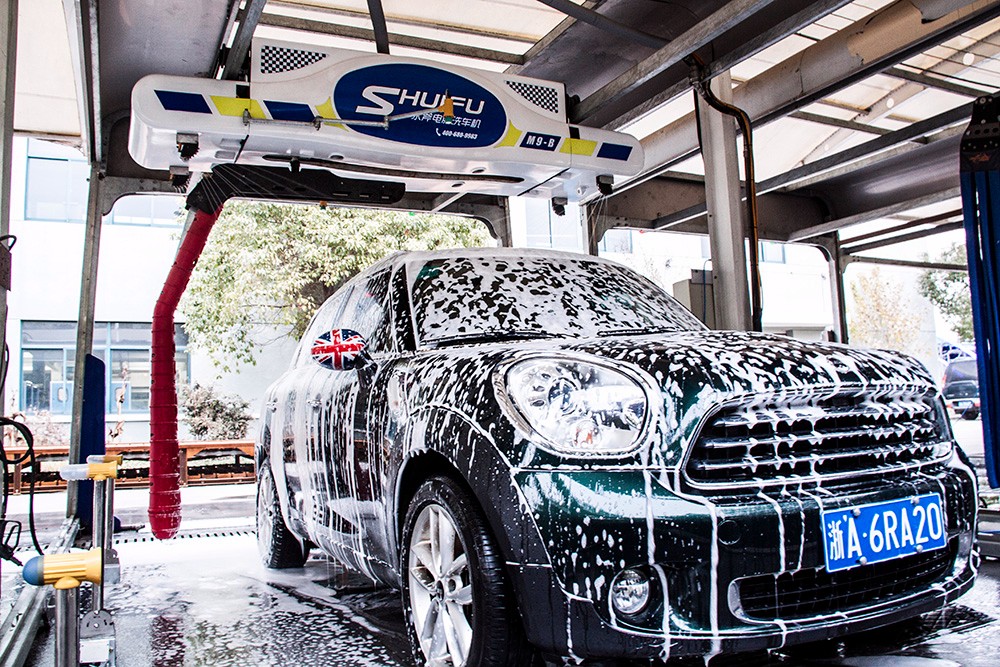

car wash supplies touchless foam-laser-wash-360 M9 SHUIFU CHINASHUIFU M9 TOUCHLESS CAR WASH MACHINE HIGH FOAMcar shampoo touchless M9 SHUIFU CHINA

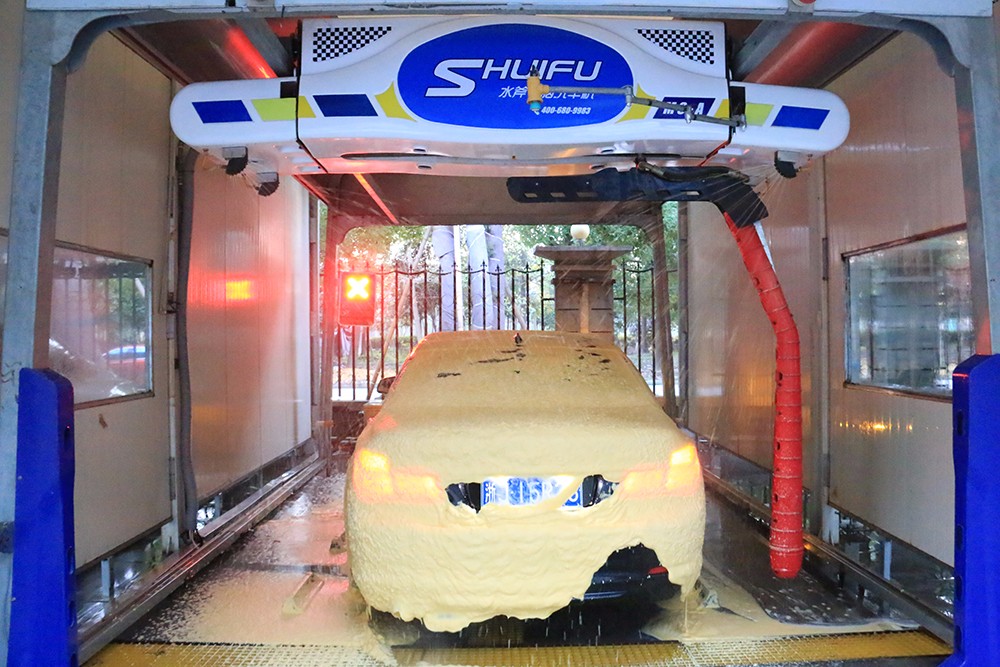

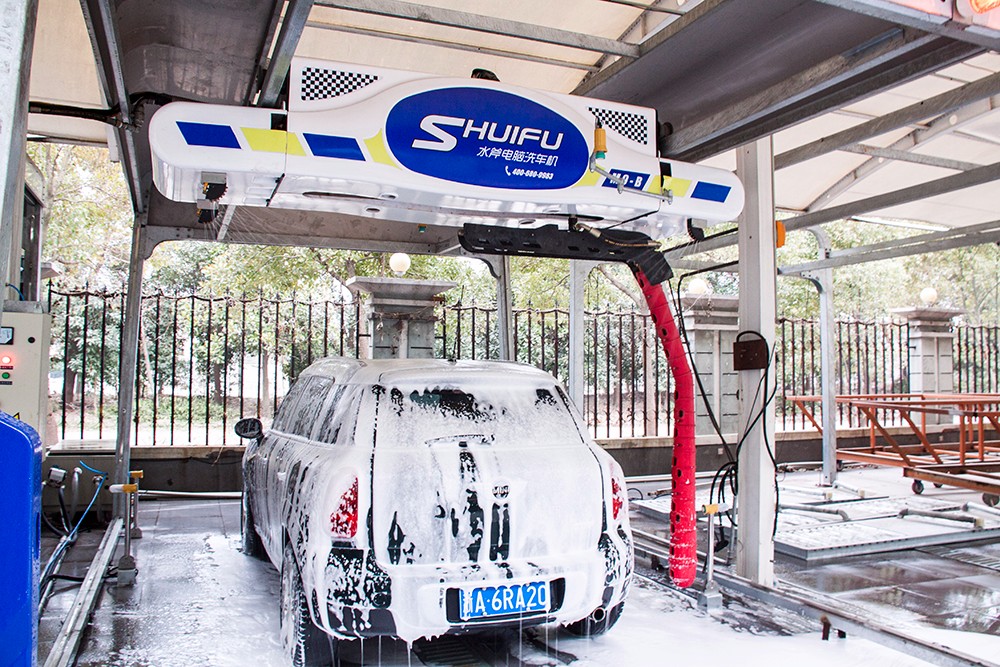

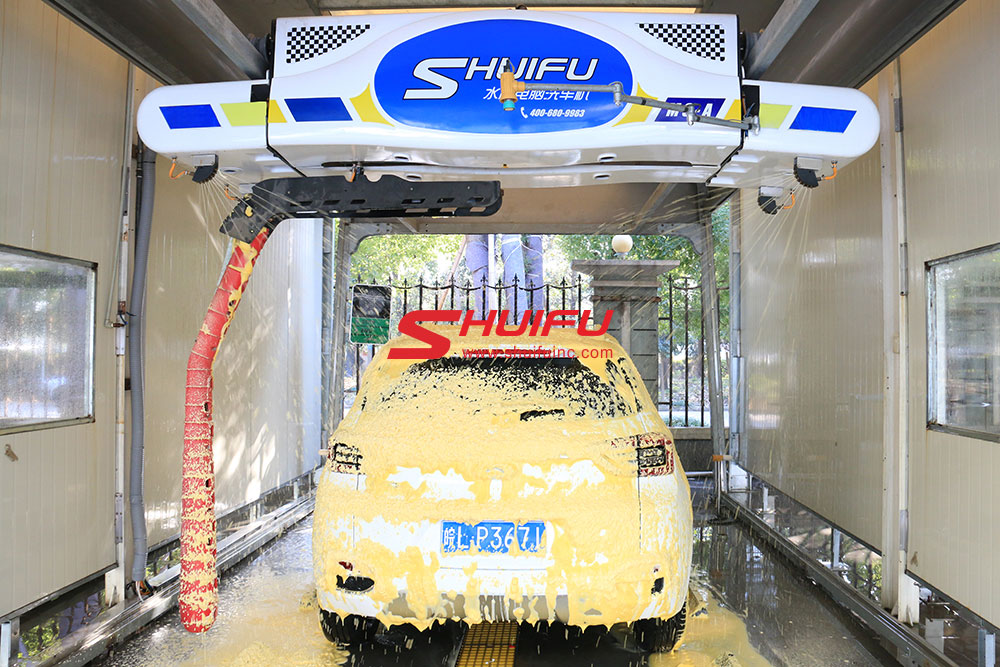

Thick Foam & Shampoo Spray On Car Is Now Standard in SHUIFU M9 Car Wash System


SHUIFU M9 TOUCHLESS CAR WASH MACHINE SHUIFU M9 TOUCHLESS CAR WASH MACHINE  HIGH PRESSURE WATERSHUIFU M9 TOUCHLESS CAR WASH MACHINE 360 LASERWASH

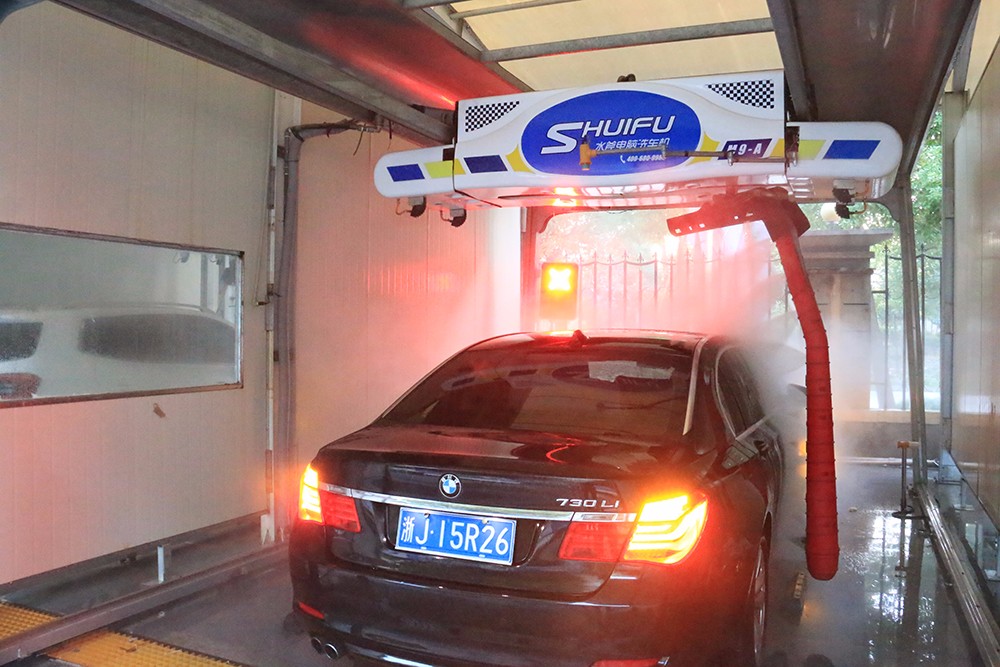

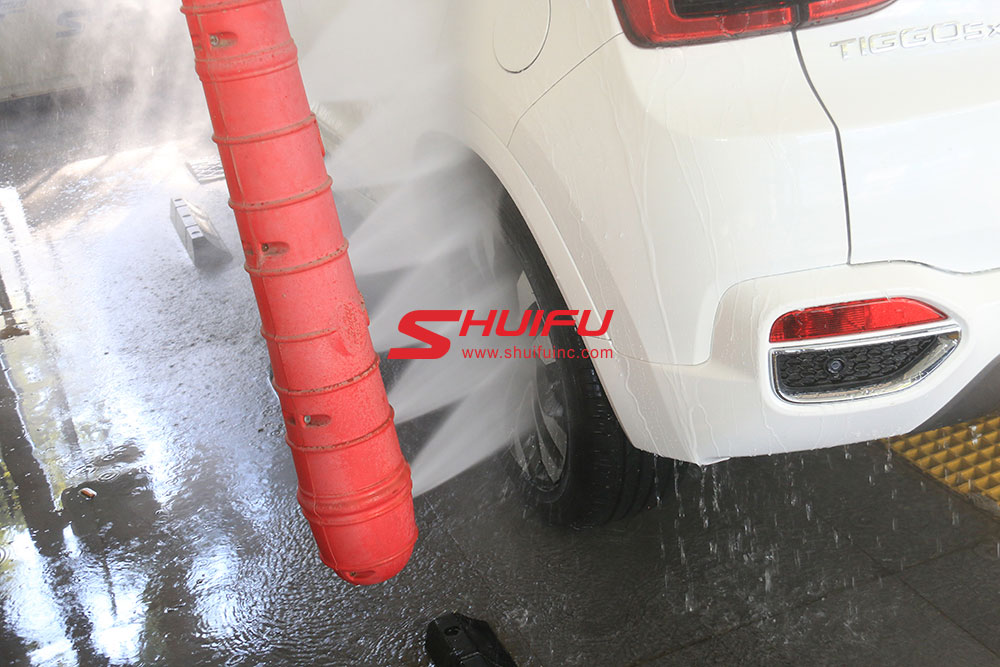

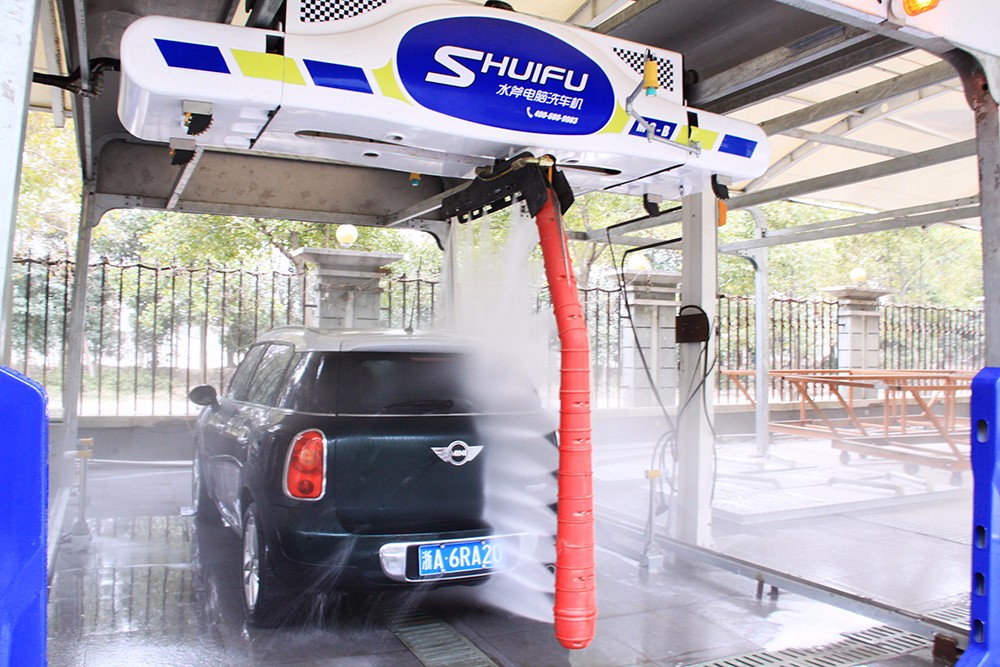

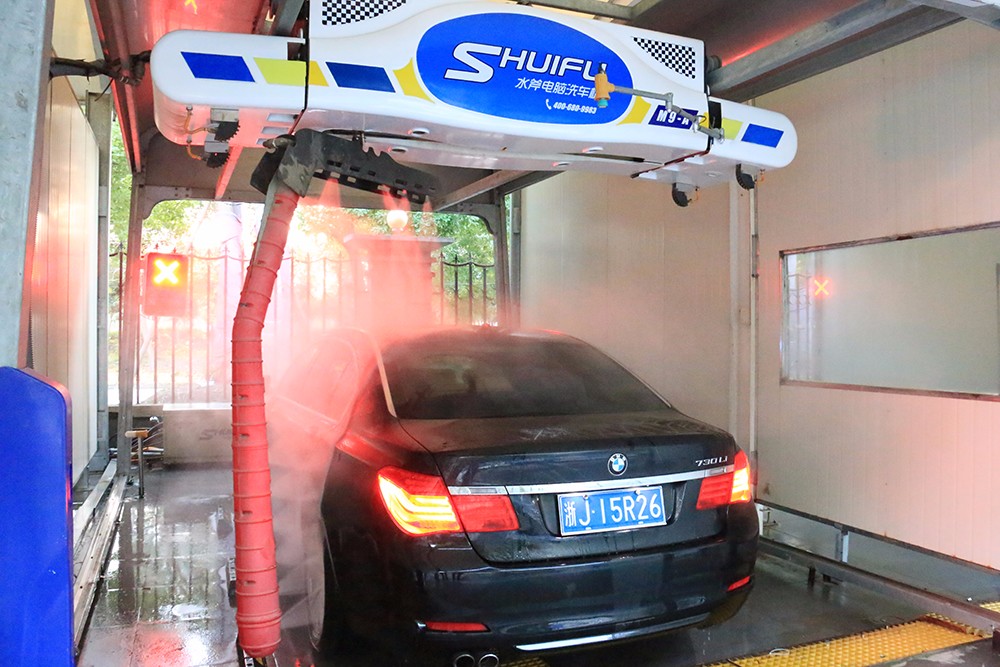

HP(High pressure) water for 360 rotary washing program, The 360 rotary bar precisely wash every corner of the car


SHUIFU M9 TOUCHLESS CAR WASH MACHINE 360 SPRAY ARM

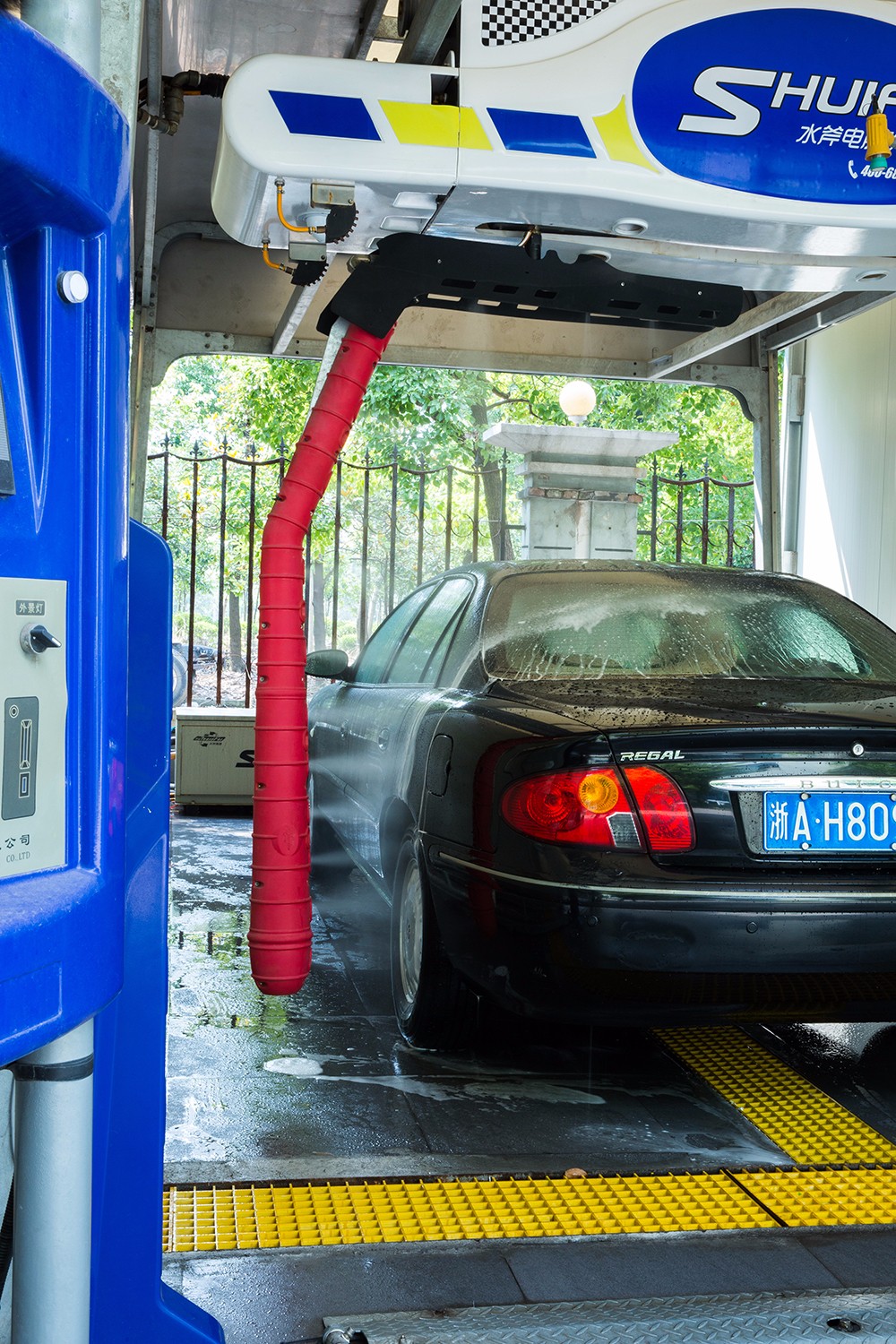

automatic car wash with presoaks touchless M9 SHUIFU CHINA.jpg

Presoak of SHUIFU-M9 Touchless Car Wash Machine, With The Special Presoak Detergent Most Of Dirties Will Loose Out The Car Rather Than Sticky On The Surface. Automaticlly Dwell Time Pre-Configed.


commercial car wash equipment M9-made-by-SHUIFU-CHINAcar wash machine touchless M9 SHUIFU CHINAcar detailing touchless car wash M9 SHUIFU CHINA

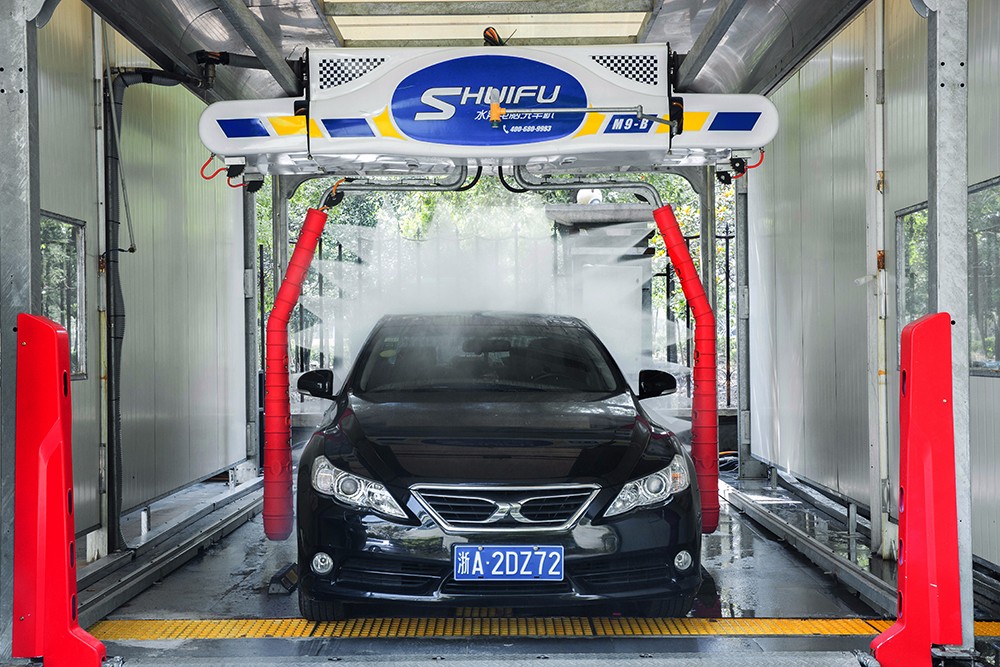

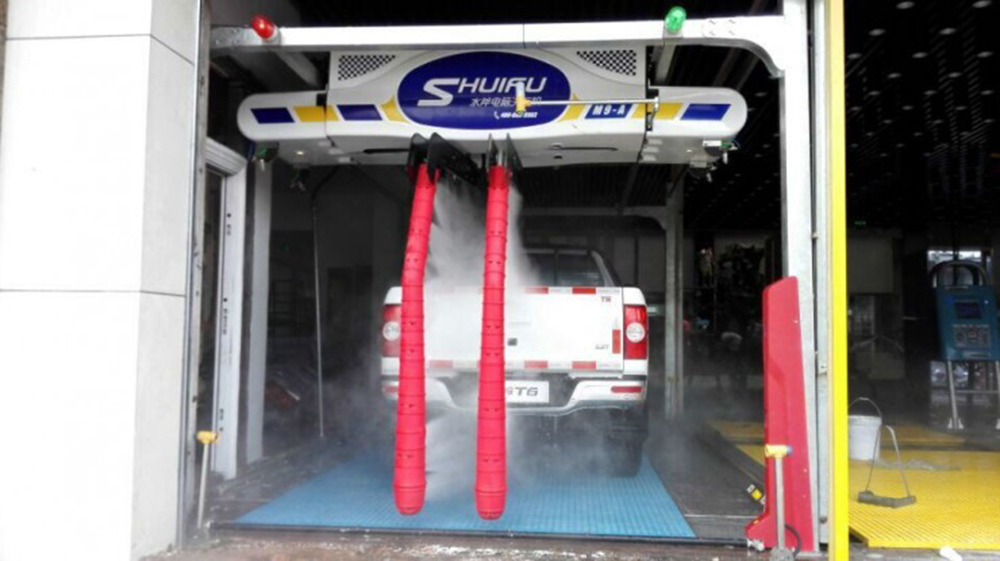

Double-Arm Of SHUIFU-M9 Touchless Car Wash Machine Is An Option, It Can Double The Washing Speed But Need Half Time Compare to Single-Arm M9.


SHUIFU-M9 Touch Free Car Wash Machine Main Technical Parameters

Automatic Touch Free Car Wash, AutomaticTouchless Car Wash
ModelSHUIFU-M9
Machine Bridge SizeL*W*H=3200mm*780mm*780mm
Pump Station SizeL*W*H=1280mm*740mm*600mm
Chemical System SizeL*W*H=700mm*450mm*1020mm
Max Vehicle Washing SizeL*W*H=6000mm*2200*2000
Machine Installation SizeL*W*H=6200mm*3686mm*3300mm
1set machine packing size2000KGS, 10CBM
Power Supply Requirement3PH AC380V 20KW
Air Switch80A
Total Machine Power20KW
Water Pump and Motor16.5KW, 100Bar Washing Pressure
Length Moving Motor Power370W asynchronous frequency conversion speed regulation
Width Moving Motor Power250W step motor
Rotation Motor Power370W step motor
Chemical System Power500W
Central Processing Unit PLCIndustrial intelligent digital control system
Driving SystemFrequency conversion+digit driver
Checking SystemIntelligent 2D+3D inspection system
Sensor SystemUltrasonic+ Absolute value encoder
Thick Foam Consumption1-12L/H according to liquid dilutionratio. 20liters for 500cars
Shampoo Consumption1-12L/H according to liquid dilutionratio. 20liters for 500cars
Wax SystemOptional
Water Consumption65-200Liters/Car according to washprocess
Electricity Consumption0.4-1KWH according to wash process

SHUIFU-M9 Touch Free Car Wash Machine Functions

Self Parking Detection SystemYes
Digital Security Collision AvoidanceSystemYes
360 High Pressure WashingYes
Chassis Washing SystemYes
Shampoo SystemYes
Thick Foam SystemYes
LED SignYes
Operation Authority FunctionYes
Car Wash Counting SystemYes
Anti Freezing SystemYes
Oil-free SystemYes
Uniform Pressure Anti Blocking NozzleYes
Alarm SystemYes
Automatic Standby FunctionYes
Steel Installation FrameYes, without glass window and stainless top cover
Car Wash Water Recycle SystemOptional
6pieces 4KW blowers fixed on steel frameOptional
Card Reader SystemOptional

SHUIFU M9 Featured Options

Wax System Optional

Fixed Drying system optional

HP(High-pressure) chassis and wheel washing device

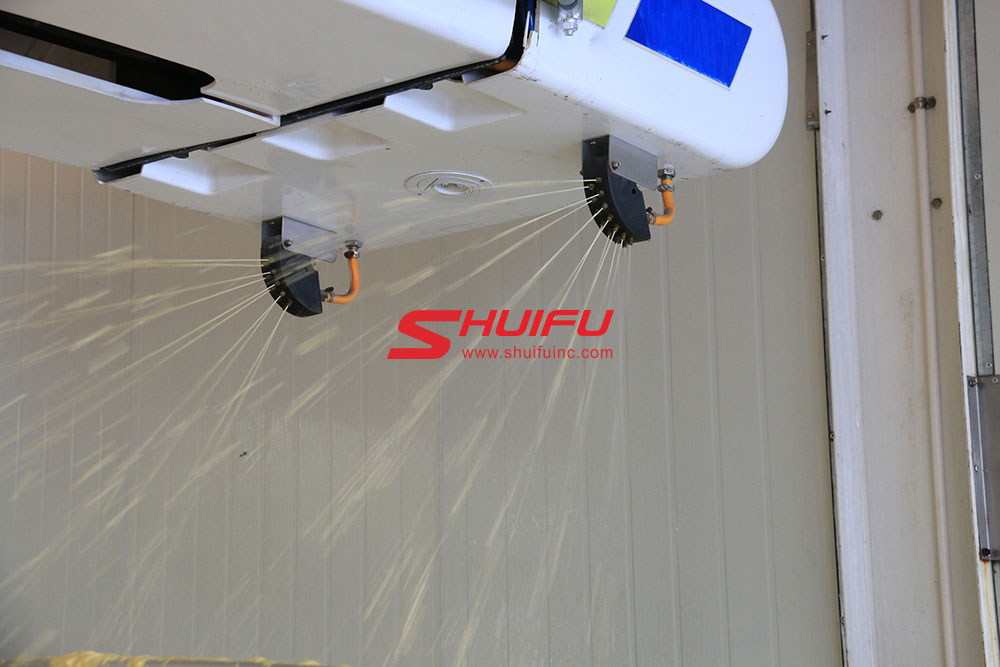

Chemical System for controlling shampoo and thick foam, wax system optional

SHUIFU-M9 Touchless Car Wash Thick Foam&Shampoo Spray, wax system optional

High-Pressure Water Pump Station. Customized pump is available.

100Bar high pressure washing

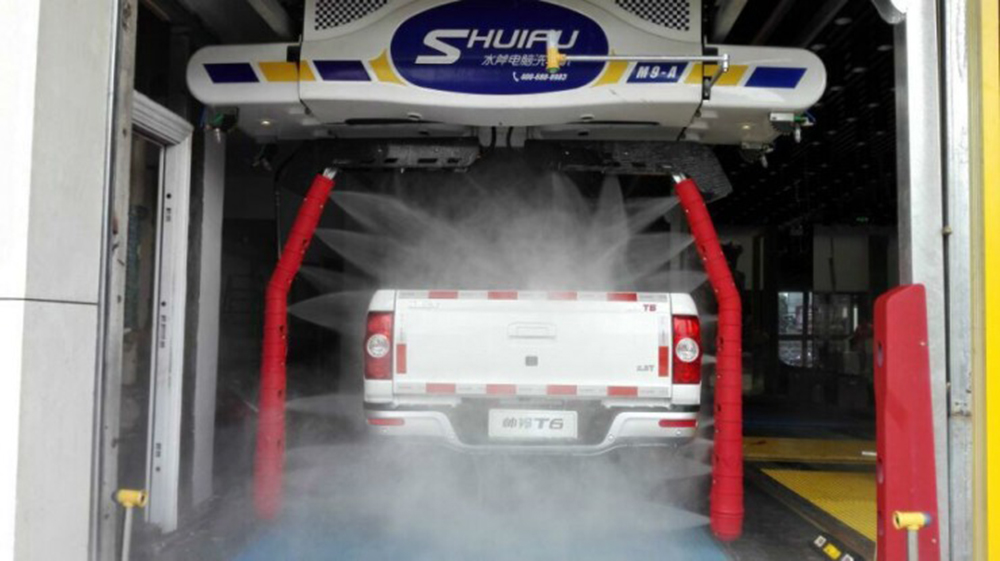

Double Washing Arm

drive through car wash of touchless double arm M9-made-by-SHUIFU-CHINAdrive through car wash touchfree M9-made-by-SHUIFU-CHINAdrive through car wash touchless M9-made-by-SHUIFU-CHINA

Pepperl +Fuchs ultrasonic sensors: 3piece on ground and 1piece on machine bridge fortesting car washing size, L arm always keeps 15-20CM washing distance to car.


Wheel Brushes(Optional)

Touchless Car Wash Machine

wheel-brush-for-touchless-car-wash-made-by-shuifuwheelbrushes-for-touchless-car-wash-made-by-shuifu-chinawheel-brushes-for-touchless-car-wash-made-by-shuifu

Wheel Brushes Enhances the Washing Result for Wheels, Tires, Fender, With HP(High-Pressure) Water Engaged By Stainless Steel Nozzles Surrounding The Round Brushes. When Brushes Rotating High-Pressure Water Comes to Rinse the Dirties, Can Absolutely Enhance The Wheel Washing. Check the Brushes Above There Are Different Thickness of Brushes Fabrics So To Penetrate Into Wheels To Wash Out The Heavy Dirties Inside Wheel.

Delivery Package for 1 Set of SHUIFU-M9

Machine in plywood box

5Packages

G.W.=2000KGS

Total Packing Size=10CBM
